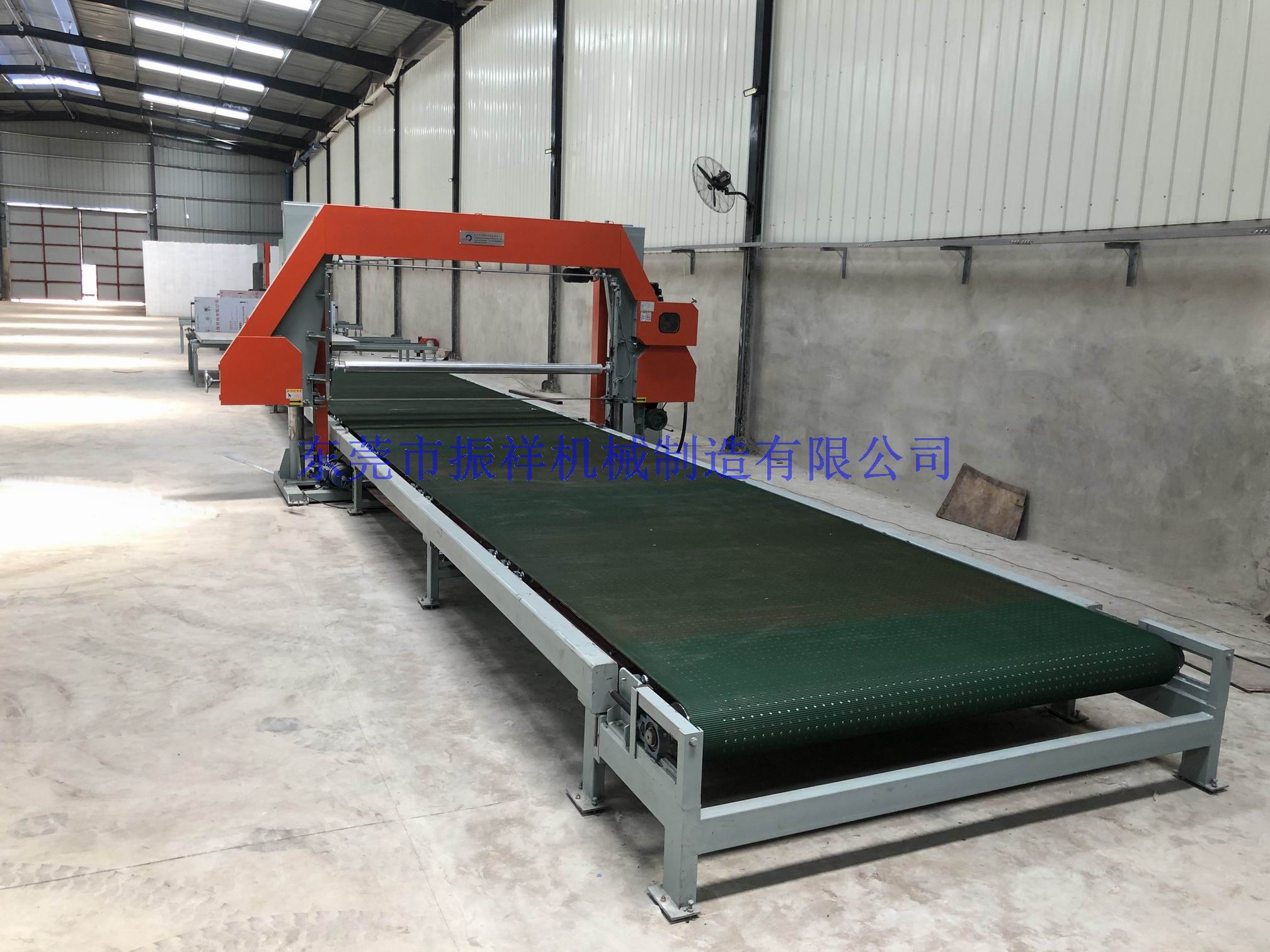

This machine is mostly used for foam blocks long sheet slicing. It adopts advanced imported inverter timing control techniques and the table adopt roller mesh-belt with vacuum equipment. The cutting is accurate, the production efficiency is high.
|
Model |
ZXPQ-II-1650 |
ZXPQ-II-2150 |
|
Cutting foam size |
L2000*W1650*H1200mm |
L3000*W2150*H1200mm |
|
Cutting thickness |
3~150mm |
2.5~200mm |
|
Cutting speed |
0~25m/min |
0~25m/min |
|
Blade length |
8940mm |
10000mm |
|
Total power |
12.72Kw |
|
|
Machine weight |
2000Kg |
2200Kg |
|
Machine external size |
L5000*W4000*H2500mm |
L7000*W4500*H2500mm |
